性能及特点

PLC控制,无级变频调速。

放卷,塑料成型,灌装,打批号,压痕,切尾,分切等7个工位由程序自动完成。

人机界面装置,操作简单明了。

灌装头不滴漏,不起泡沫,不溢出。

与药液接触的相关部位全部采用优质不锈钢材料,符合GMP标准。

主要气动元件,电器采用进口配件。

电子蠕动泵自控灌装系统与机械灌装两种,计量准确误差小。

Performance and feature

It adopts PLC control and stepless frequency conversion speed regulation.

The working processes such as unwinding, plastic forming, filling, batch number printing, indentation, punching and cutting are completed automatically by the program.

It adopts human-machine interface device, which has simple operation.

The filling has no dripping, bubbling, and overflowing.

The parts contacting with medicine all adopt high quality stainless steel material, which meets with GMP standard.

The main penumatic and electrical components adopt imported brand.

It adopts self-control filling system of electronic peristaltic pump and mechanical filling, which have accurate metering with small error.

主要技术参数Main technical parameter

最大成型深度

Max. forming depth

12mm

冲裁次数

Punch frequency

0-25次

包装材料

Packing material

PVC/PE,PET/PE(0.2-0.4)×140mm

灌装容量

Filling volume

1-50ml

电源总功率

Toal power supply power

7KW

电压

Voltage

220-380V/50Hz

整机重量

Machine weight

900Kg

外形尺寸(长x宽x高)

Overall dimension (L*W*H)

2300×850×1400(mm)





用途

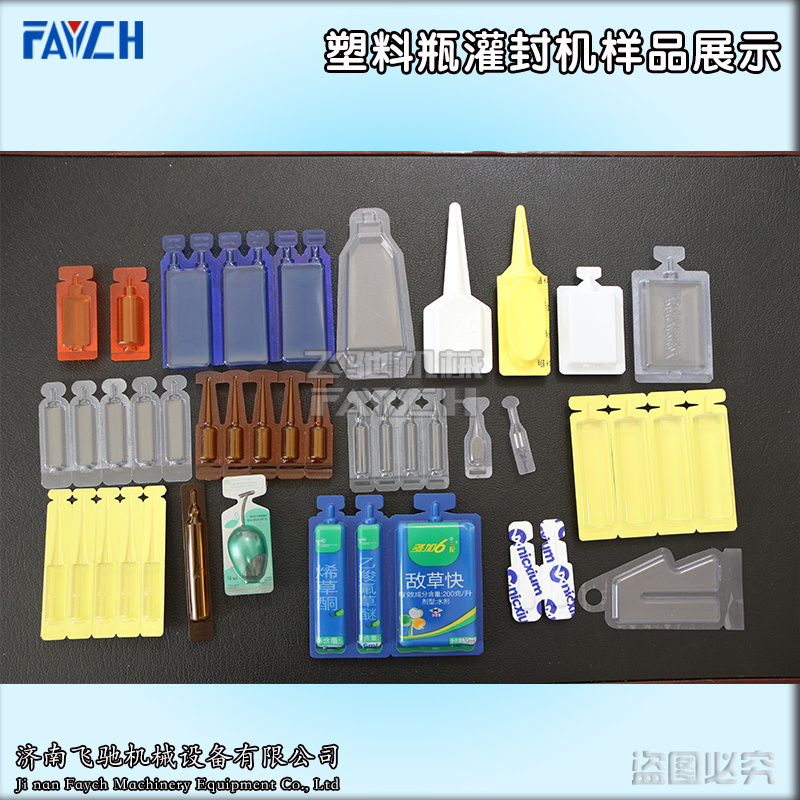

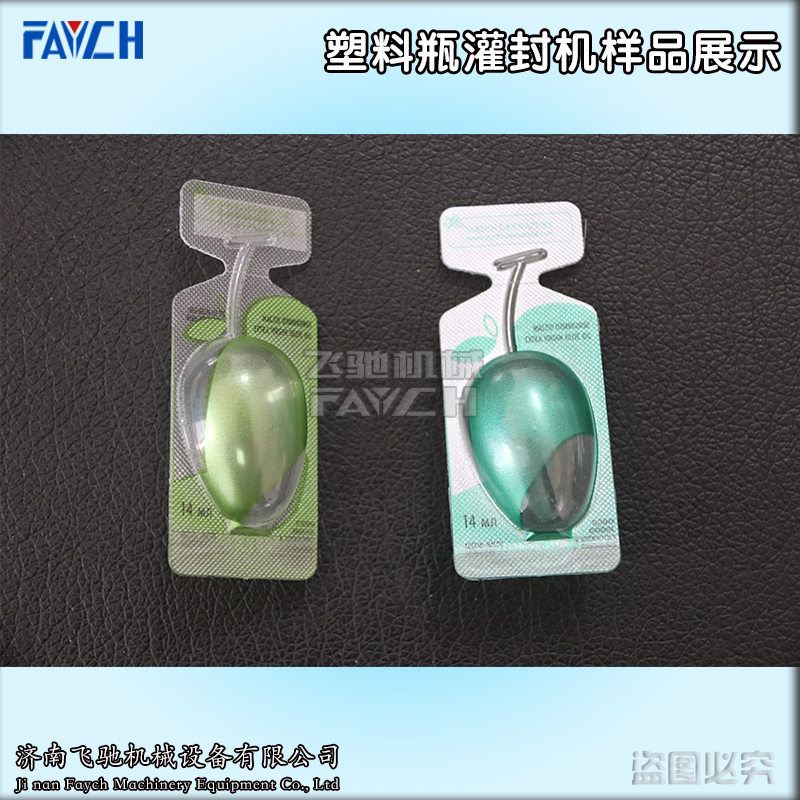

口服液,液体,农药,香水,化妆品,果浆,食品类等。

Application

It is suitable for oral liquid, liquid, pesticide, perfume, cosmetics, fruit pulp, food, etc.

PM-100贴标机联动线   PM-100 labeling machine

主要技术参数  Main technical parameter

标签尺寸

Label size

(L)58mm (W)6mm

适用标签卷内径

Applicable label roll inner diameter

Φ76 mm

适用标签卷内径

Applicable label roll inner diameter

最大Φ350 mm

整机尺寸

Machine size

2000×600×1800(mm)

电压

Voltage

AC220V,50Hz/60Hz, 800W



性能及特点

灌封好的产品从口服液灌装(封)机输出后,由机械手转接装置抓取到贴标机输送带上进行贴标,节约了劳动力成本。

Performance and feature

After the filled and sealed product is output from the oral liquid filling and sealing machine, it is captured on the conveyor belt of the labeling machine for labeling by the transfer device of the mechanical arm, which saves labor force cost.

产品详情

GFJ-120(P5)液体灌封机贴标机联动线

性能及特点
PLC控制,无级变频调速。
放卷,塑料成型,灌装,打批号,压痕,切尾,分切等7个工位由程序自动完成。
人机界面装置,操作简单明了。
灌装头不滴漏,不起泡沫,不溢出。
与药液接触的相关部位全部采用优质不锈钢材料,符合GMP标准。
主要气动元件,电器采用进口配件。
电子蠕动泵自控灌装系统与机械灌装两种,计量准确误差小。
