GFJ-120(P5)液体塑料瓶自动成型灌封机

一、性能及特点

PLC控制，无级变频调速。

放卷，塑料成型，灌装，打批号，压痕，切尾，分切等7个工位由程序自动完成。

人机界面装置，操作简单明了。

灌装头不滴漏，不起泡沫，不溢出。

与药液接触的相关部位全部采用优质不锈钢材料，符合GMP标准。

主要气动元件，电器采用进口配件。

电子蠕动泵自控灌装系统与机械灌装两种，计量准确误差小。

Performance and feature

It adopts PLC control and stepless frequency conversion speed regulation.

The working processes such as unwinding, plastic forming, filling, batch number printing, indentation, punching and cutting are completed automatically by the program.

It adopts human-machine interface device, which has simple operation.

The filling has no dripping, bubbling, and overflowing.

The parts contacting with medicine all adopt high quality stainless steel material, which meets with GMP standard.

The main penumatic and electrical components adopt imported brand.

It adopts self-control filling system of electronic peristaltic pump and mechanical filling, which have accurate metering with small error.

二、主要技术参数  Main technical parameter

三、用途

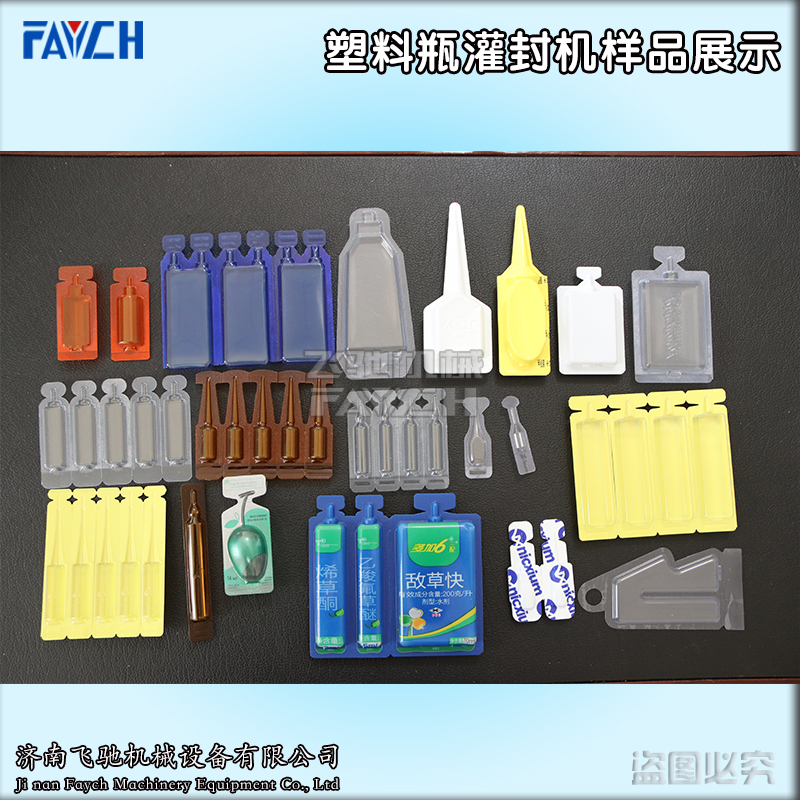

口服液，液体，农药，香水，化妆品，果浆，食品类等。

Application

It is suitable for oral liquid, liquid, pesticide, perfume, cosmetics, fruit pulp, food, etc.

四、配置清单
