GFJ-240(P5)口服液自动成型灌封机

性能及特点
PLC控制,无级变频调速。
放卷,塑料成型,灌装,打批号,压痕,切尾,分切等7个工位由程序自动完成。
人机界面装置,操作简单明了。
灌装头不滴漏,不起泡沫,不溢出。
与药液接触的相关部位全部采用优质不锈钢材料,符合GMP标准。
主要气动元件,电器采用进口配件。
电子蠕动泵自控灌装系统与机械灌装两种,计量准确误差小。
收藏
  • 一、性能及特点

    HC高速高精度高端运动控制器。无级变频调速控制。伺服电机控制拉膜装置

    人机界面装置,操作简单。

    自动放卷,卷膜分切。有光电正反面图案对版功能。产品精美,满足高标准的包装要求。

    采用电子蠕动泵装置和机械泵活塞泵控制,调正方便。

    灌装精度正确,灌装不滴漏,不起泡沫,不溢出。

    与药接触的部位采用优质不锈钢316L,机器外罩全部是SUS304不锈钢。符合GMP标准。

    瓶子底部是平的,可以立起来。

    Performance and feature

    High capacity, high speed, high precision, and advanced motion controller. Stepless frequency conversion speed regulation control. Servo motor controls film traction device.

    Human-machine interface, easy to operate.

    Automatic unwinding, roll film cutting. It has positive and negative pattern alignment function with photoelectric device. The product is exquisite and beautiful, which meets high standard of packing requirements.

    It adopts electronic peristaltic pump device and mechanical piston pump control, which has convenient adjustment.

    High filling accuracy with suction back function without any dripping.

    The parts contacting with the medicine adopt high quality stainless steel 316L, and the outer cover of the machine is made of SUS304 stainless steel, which meets with GMP standard.

    As the bottom of the bottle is flat, so it can stand.

    二、主要技术参数  Main technical parameter

    最大成型深度

    Max. forming depth

    12mm

    冲裁次数

    Punch frequency

    0-25次

    包装材料

    Packing material

    PVC/PE,PET/PE(0.2-0.4)×240mm

    灌装容量

    Filling volume

    1-50ml

    电源总功率

    Toal power supply power

    7KW

    电压

    Voltage

    380V/50Hz

    整机重量

    Machine weight

    1200Kg

    外形尺寸(长x宽x高)

    Overall dimension (L*W*H)

    3200×850×1400(mm)

    三、用途:

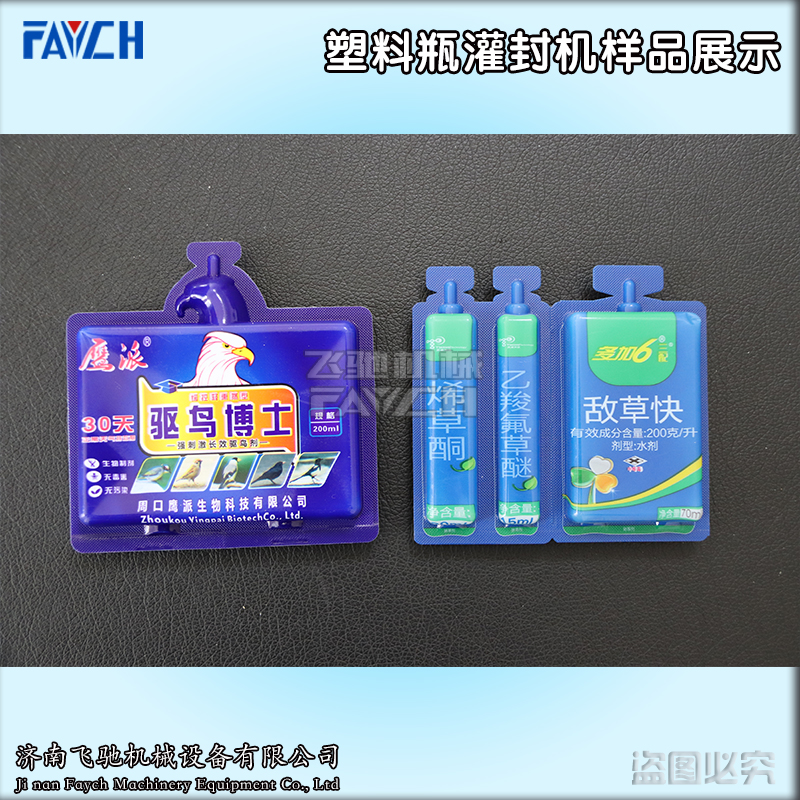

    该机适用于单位计量的药品,饮料,乳制品,保健品,食品,化妆品,香水,农药品,果浆类等。

    Application

    The machine is suitable for unit metering of medicine, beverage, dairy product, health product, food, cosmetics, perfume, pesticide, fruit pulp and so on.

    四、配置清单

    GFJ-240P5配置清单

    名称

    数量

    品牌

    产地

    运动控制器

    1

    HC

    东莞

    双串口触摸屏

    1

    维纶

    广东

    温度模块

    1

    汇邦

    江苏

    编码器DC24V/360P差分

    1

    欧姆龙

    日本

    热电偶

    6

    K

    中国

    断路器4P 60A

    1

    施耐德

    德国

    断路器1P 20A

    9

    施耐德

    德国

    小型继电器4P

    1

    欧姆龙

    日本

    小型继电器2P

    1

    施耐德

    德国

    开关电源24V/150W

    1

    MW

    台湾

    8位黑色接线柱1.25-8

    4

    施耐德

    德国

    4位黑色接线柱2.5-4

    1

    施耐德

    德国

    绿色1.25/5接线柱

    11

    正泰

    中国

    绿色接线柱4.5/5

    1

    正泰

    中国

    绿色2.25/5接线柱

    2

    正泰

    中国

    固态继电器40A

    4

    欧姆龙

    日本

    固态继电器25A

    2

    欧姆龙

    日本

    散热器

    6

    浙江

    交流接触器3210

    1

    施耐德

    德国

    普通常闭接近开关

    1

    欧姆龙

    日本

    欧姆龙接近开关

    2

    欧姆龙

    日本

    霍尔开关

    1

    施耐德

    德国

    急停

    2

    施耐德

    德国

    蘑菇头-按钮/红

    1

    施耐德

    德国

    按钮/黑

    1

    施耐德

    德国

    按钮/黄

    1

    施耐德

    德国

    按钮/绿

    1

    施耐德

    德国

    伺服

    1

    安川

    日本

    变频器

    2

    施耐德

    德国

    蠕动泵

    1

    慧宇

    中国
